40MM NONE-EURO SERIES CASEMENT WINDOW HARDWARE
40 MM CASEMENT

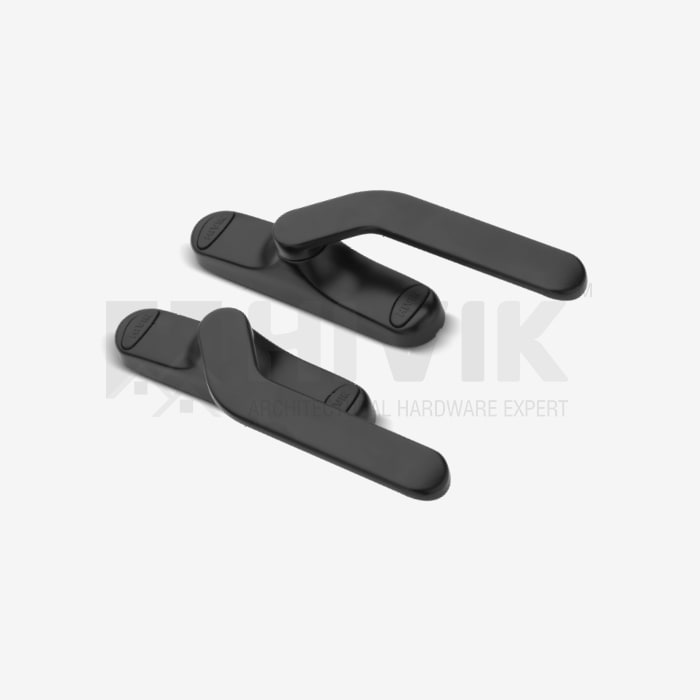

HIVIK-7 CREMONE SHORT NECK HANDLE LEFT / HIVIK-7 CREMONE SHORT NECK HANDLE RIGHT
Product Code
PH211/L / PH211/R
Technical Specification:
- Fork Driven Reversible Cremone Handle, Mainly use for Casement and Sliding Windows Multi-Locking Operating Handle,
- Easy & Quick Mounting System with Smooth Gearing Mechanism while Locking-Unlocking,
- Zinc Die-Casted Base Body & other Parts,
- Alu. Die-Casted Handle & Polyamide-6 other Plastic Parts
- Short Height of the Handle use where Fly Screen Sash Comes Inside Track

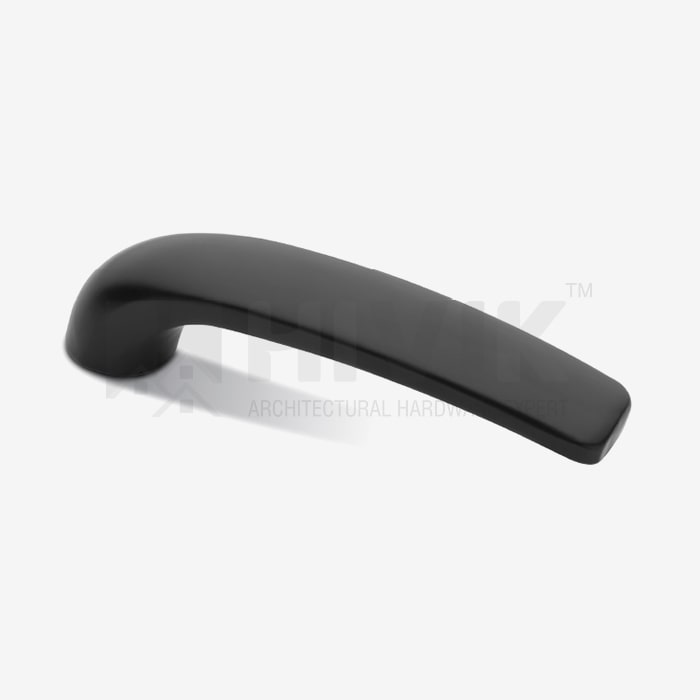

HIVIK-8 CREMONE SICURITY HANDLE KEY
Product Code
PH191
Technical Specification:
- Hivik-8 Security Cremone Key which Enables the Function of Cremone Base Body
- Alu. Die-casted Handle

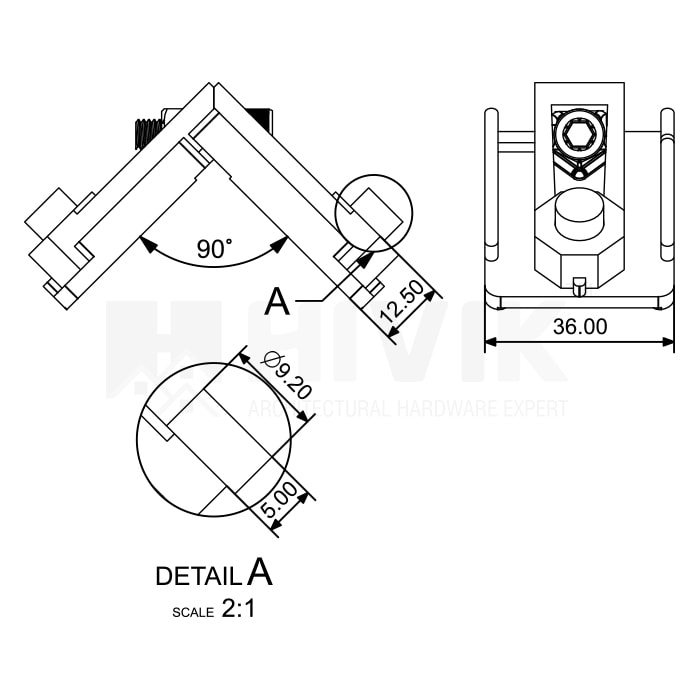

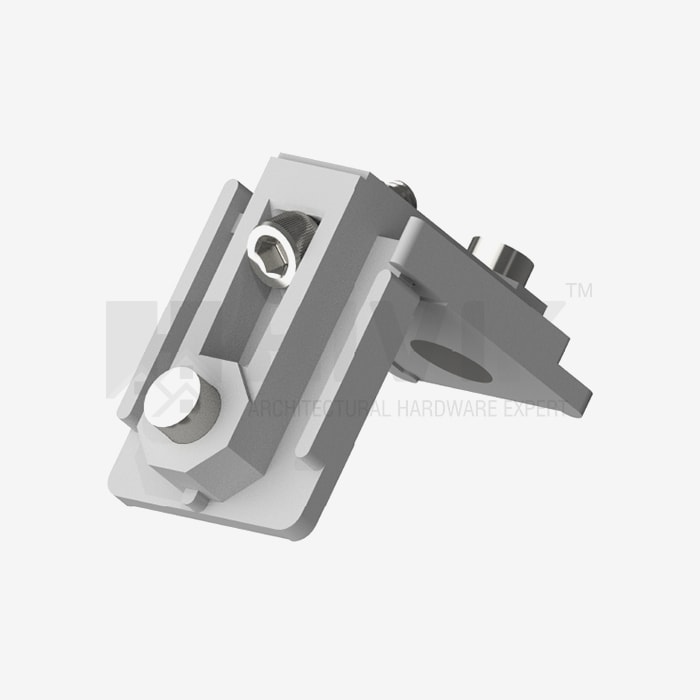

14X36MM CASTED CORNER CLEAT
Product Code
CCC1436
Technical Specification:
- Quick and Easy to Install,
- Steel Shot Enables Manually Lock/Unlock Function,
- Completely Concealed in Shutter for Flush Look,
- Also Known as Single Point Lock for Sliding Window Series,
- Mainly Use in Balcony Area and Children Room Windows for Restrict the Automatic Locking.
- Aluminium Extruded Body with Polyamide-6 Slider & SS304 Shot,
- Zinc Die-Casted Nib Locking Part with SS304 Locking Nib,
- Use in All Sliding Windows Systems

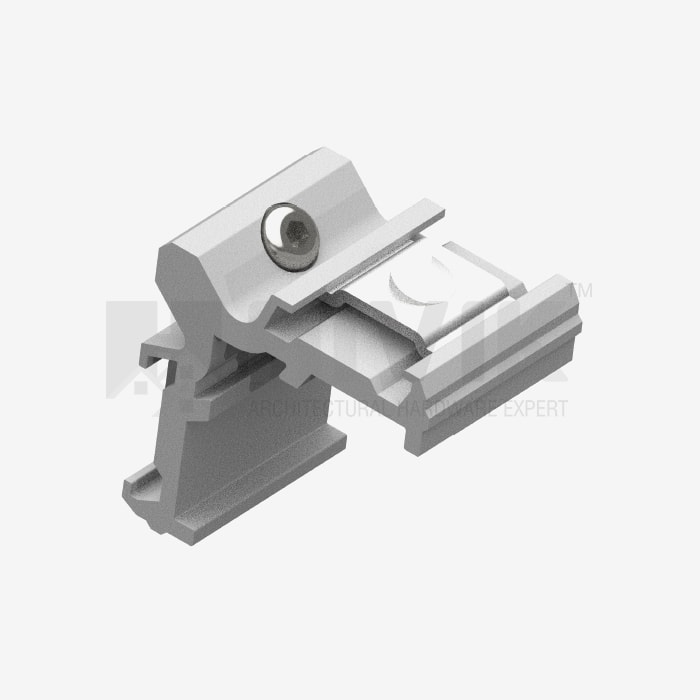

14X36MM ADJUSTABLE CORNER CLEAT
Product Code
CCB1436
Technical Specification:
- Shutter and Frame 45° Quick Joining
- Aluminium Extruded Body with MS Zinc Plated Bolt and Spring
- Aluminium Extruded Non-Adjustable Button
- Use in 40mm Casement Window Shutter & Frame

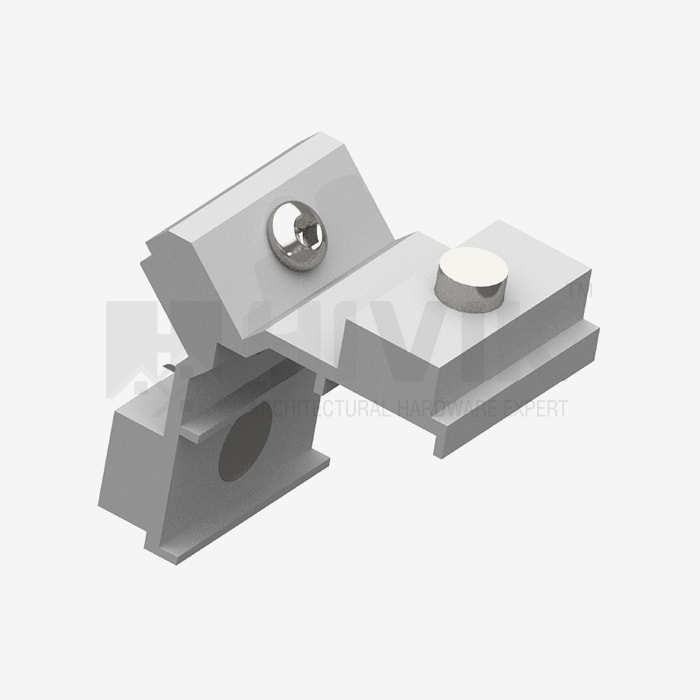

14X36MM ADJUSTABLE CORNER CLEAT
Product Code
CC1436
Technical Specification:
- Shutter and Frame 45° Quick Joining
- Aluminium Extruded Body with MS Zinc Plated Bolt and Spring
- Aluminium Extruded Non-Adjustable Button
- Use in 40mm Casement Window Shutter & Frame

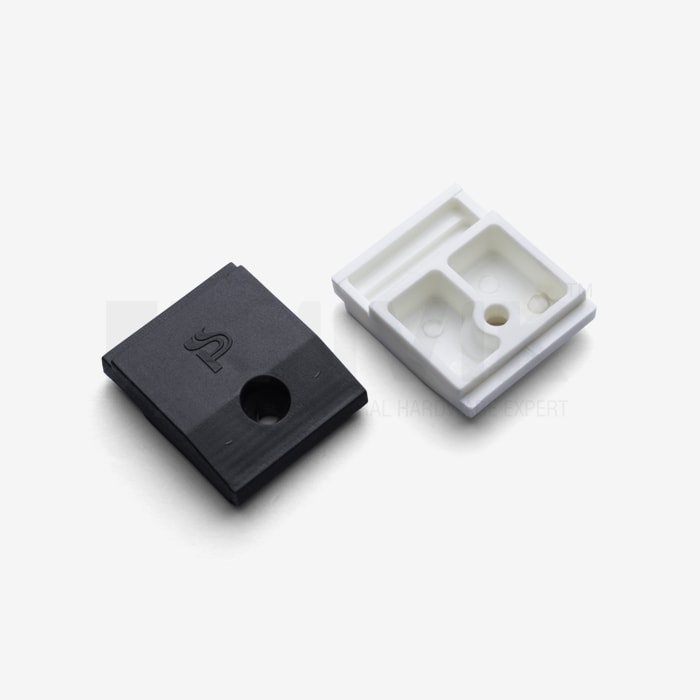

40MM RUN UP BLOCK
Product Code
PH125
Technical Specification:
- Shutter Support Devise
- Polyamide-6 Body
